All About the Alta Contemporary Stainless Steel Lever Gate Latch

We’ve been making the Alta Gate Latch for years now, and it’s time to summarize some of the features and share excellent client photos.

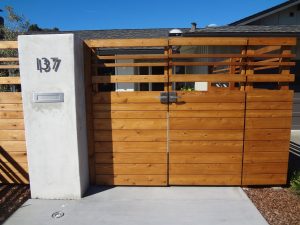

Talk about Curb Appeal! A contemporary entrance to a 1960's Ranch
Talk about Curb Appeal! A contemporary entrance to a 1960’s Ranch

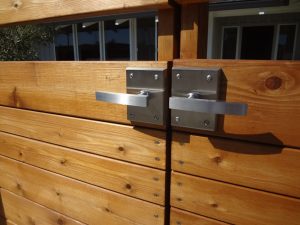

Double Gate Hardware with 316 Marine Grade Stainless Steel Alta Gate Latch
Double Gate Hardware with 316 Marine Grade Stainless Steel Alta Gate Latch
Another view of this great exterior
Another view of this great exterior

















The Alta is made of 316 grade (marine grade) stainless steel. The levers are spring-loaded for ease of use.  When installed on a double gate, as shown below, you have an option to add a dummy handle. The purpose of the dummy handle is to have something to hold onto when opening and closing the inactive gate. The lever doesn’t move.

Double Contemporary Gate with Alta Stainless Steel Gate Latch
Dummy handle (on left)

This particular double gate was framed with 2×6 material set on edge, so the gate thickness was 5-1/2″. However, the horizontal boards are only installed on the exterior/entry side of the gates. So how to install the gate latch? The woodworker used the ‘blocking’ technique where they attach a block of wood to the 2×6 frame on the interior of the gate. This created a flat surface for the latch to be installed (see second and third photo below).



View inside the double contemporary gates
View inside the double contemporary gates

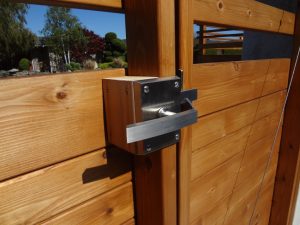

Example of "Blocking" an area to create a sturdy installation for gate hardware
Example of “Blocking” an area to create a sturdy installation for gate hardware
Inside View of Alta Contemporary Stainless Steel latching onto a double gate
Inside View of Alta Contemporary Stainless Steel latching onto a double gate



















But what happens when you have a double gate that swings out toward the street? The layout below shows it. The key on this setup is to have a wide enough stile (the vertical part of the gate frame) to accommodate evenly spaced latch and dummy handle.
Outswinging-Double-Gate-Alta-Stainless-Steel-Contemporary-Latch

This is a single gate showing the plate on a wide stile.

Interior View of Contemporary Alta Gate and Latch

We’ve had quite a few clients use the Alta Latch on trash enclosures. The photo below shows two dummy handles as the pulls. The photo below that shows a functional latch set.
Modern trash enclosure with 360 Yardware Alta Stainless Gate Latch
